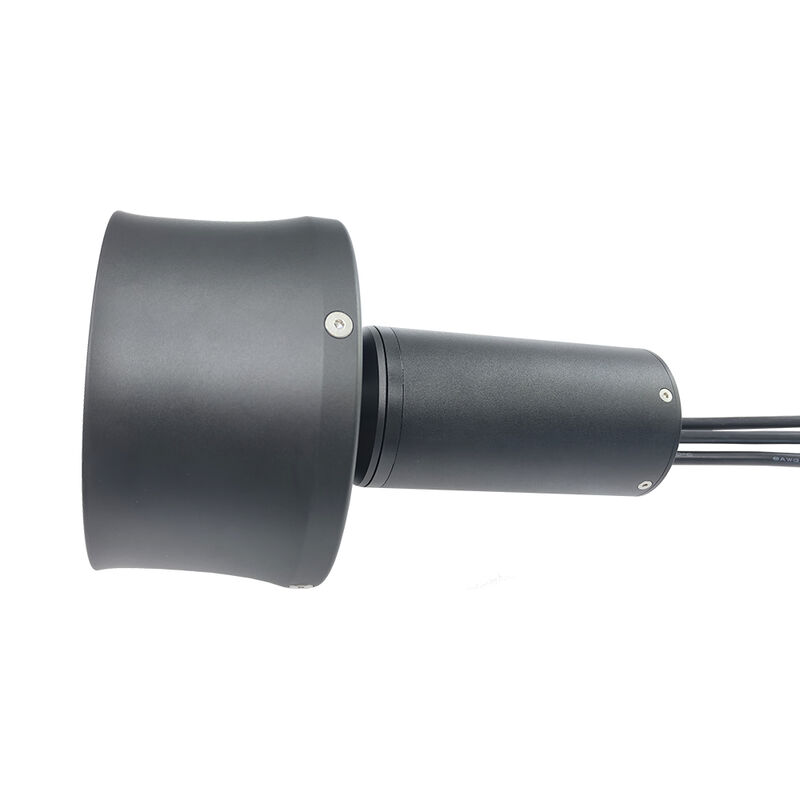

HS-T2000 130KV IP68 Waterproof Underwater Thruster Brushless Motor

Thruster model: T2000

Motor model: 65122-130KV

Size: 219.5mm*142mm

Shaft specification ∅12*M8

Voltage range: 6-20S

Rated current: 52A

Maximum current: 100A

Rated power: 2000W

Maximum power: 3700W

Gold plug 8.0mm Plug

Isolation current AC500v/1ma/3s

Three-phase lead wire 3*8AWG (6.00mm)

Internal structure 18N/6p

Rated torque: 2.9N.m

Maximum torque 5.5N.m

CNC-machined high-strength aluminum alloy propeller

Aluminum alloy low-resistance high-efficiency guide cover

Features:

①360°large flow water inlet;

②High angle of attack, high load propeller-JP120;

③High-strength all-aluminum alloy anode shell;

④Equipped with fully waterproof motor ;

⑤Easy to install. For surfboards, paddle boards, kayaks, SUP...

⑥Motor wire: 8＃silicone cable, 1300mm-Black, with 8.0mm gold connector plug.

Thrust (KGF):

Voltage: 13S, measured voltage: 51V

Output power: 0.5KW, thrust: 13.5KGF

Output power: 1KW, thrust: 21KGF

Output power: 1.4KW, thrust: 26.5KGF

Output power: 1.8KW, thrust: 30.5KGF

Output power: 2KW, thrust: 32KGF

Net weight: 2.68KG

Gross weight: 3.2KG
