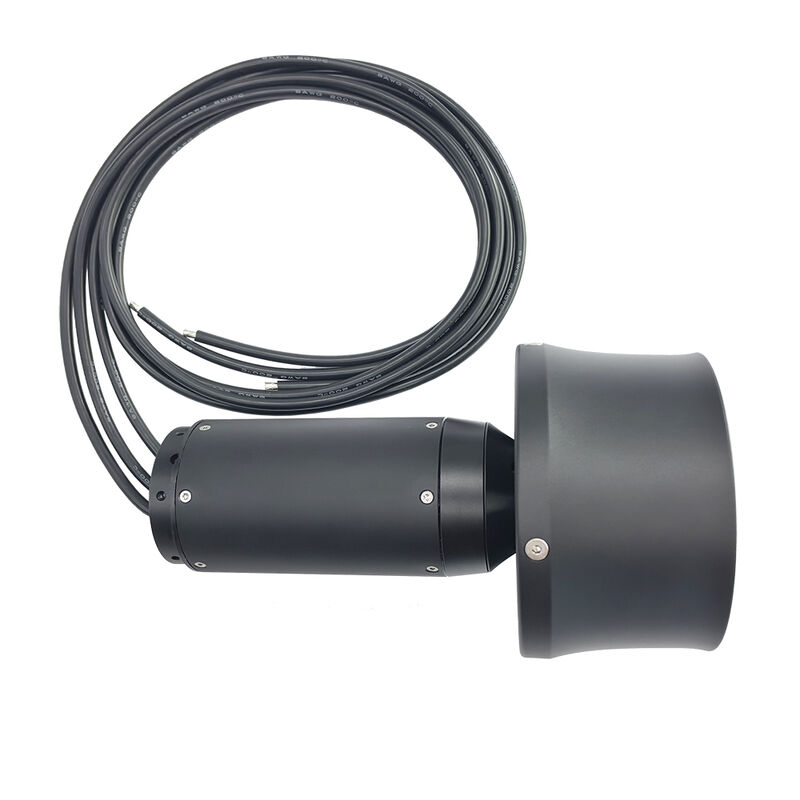

HS-75141 100KV IP68 Waterproof Underwater Thruster Brushless Motor

Motor model: 75141-100KV

Demension(mm) :234mm*142mm

Construction :18N/20P

Insulation class :AC500V/1mA/3S

Waterproof grade :Fully waterproof

Shaft diameter (mm) :Φ12

Plug :8mm Gold plug

Extension wire length(mm) :1300mm

Color :Full black

KV(RPM/V) :100KV

Maximum torque (N.m) :12N.m

Rated torque (N.m) :6.2N.m

Maximum thrust (KGF) :55KGF

Operation voltage :5S-18S(21-75V)

Max current(A) :120A

Max Power(W) :9KW

Rated Power(W) :4.5KW

Working temp. limit C :120℃

CNC-machined high-strength aluminum alloy propeller

Aluminum alloy low-resistance high-efficiency guide cover

Features:

①360°large flow water inlet;

②High angle of attack, high load propeller-JP120;

③High-strength all-aluminum alloy anode shell;

④Equipped with fully waterproof motor ;

⑤Easy to install. For surfboards, Efoil , Jetboard,hydrofoil...

⑥Motor wire: 8＃silicone cable, 1300mm-Black, with 8.0mm gold connector plug.

Thrust (KGF):

Voltage: 16S, measured voltage: 60V

Output power: 2.0KW, thrust: 35KGF

Output power: 2.5KW, thrust: 39KGF

Output power: 3.0KW, thrust: 44KGF

Output power: 3.5KW, thrust: 50KGF

Output power: 4.0KW, thrust: 53KGF

Output power: 4.5KW, thrust: 55KGF

Net weight: 3.6KG

Gross weight: 4.2KG

Packaging size: L300mm*W300mm*H200mm
